E6013/E7018 welding rod making machine,welding electrodes production line supplier with Factory Price
- Product description: E6013/E7018 welding rod making machine,welding electrodes production line supplier with Factory Price

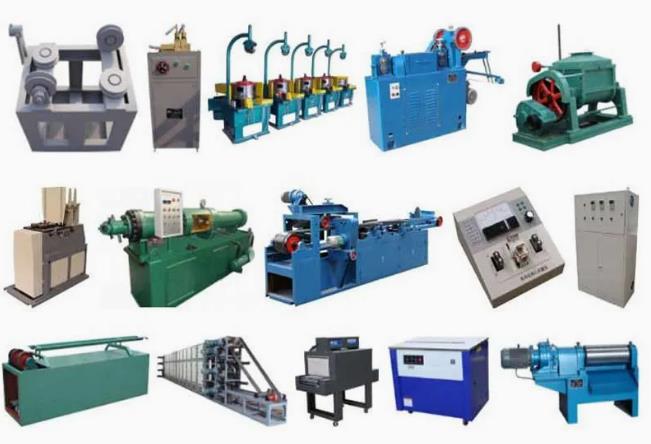

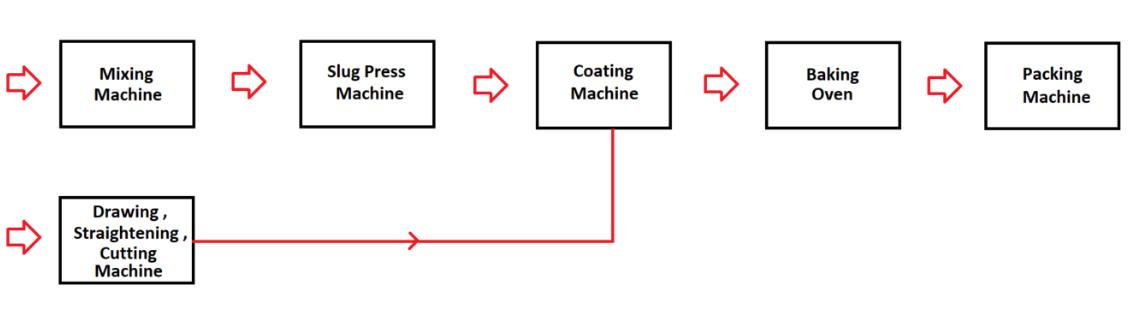

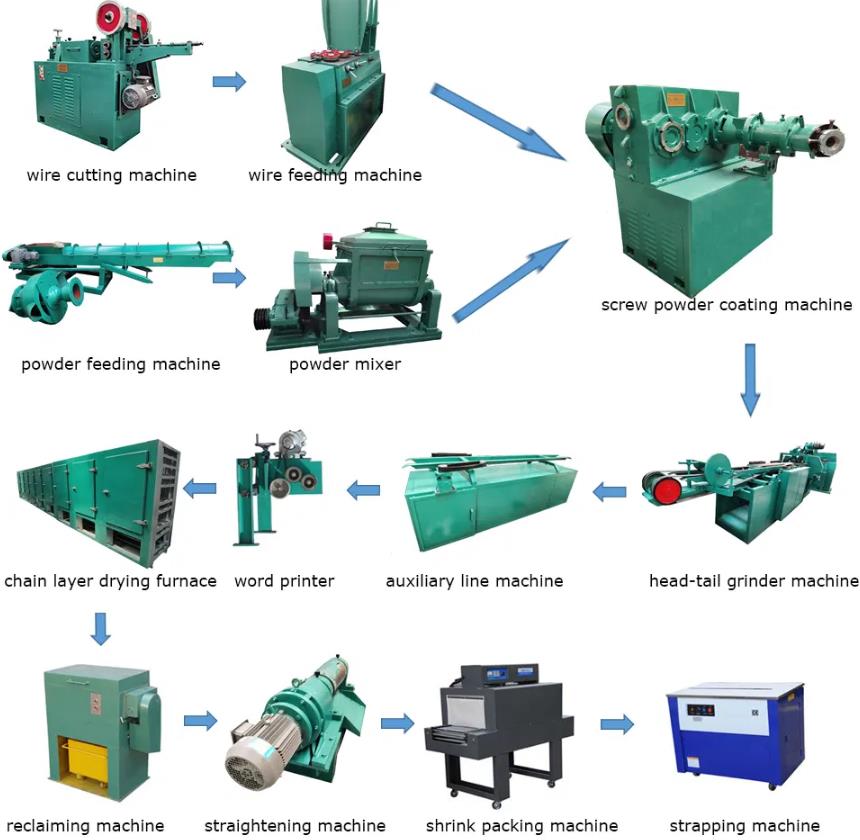

This production line for making E6013 / E7018 welding electrodes, including descaling machine, tip roller, butt welding machine, wire drawing machine(pulley type wire drawing machine/straight line wire drawing machine), wire cutting machine, powder mixer, wire feeding machine, screw powder coating machine(hydraulic slug presser), head-tail grinder machine, electrode eccentric measuring machine, electrical cabinet, auxiliary line machine, words printer, box type hot air circulation drying furnace(chain layer drying furnace), shrink packing machine, strapping machine, reclaiming machine, straightening machine.
| Welding electrodes diameter | 2.0mm, 2.5mm, 3.2mm, 4.0mm, 5.0mm |
| Welding electrodes length | 200mm-500mm |
| Productive capacity | 2-10tons/ shift (8hours) |
| Voltage | 380V / 50HZ, or as requirement |
| Equipment color | Green colour , blue colour or as per buyer's requirement. |

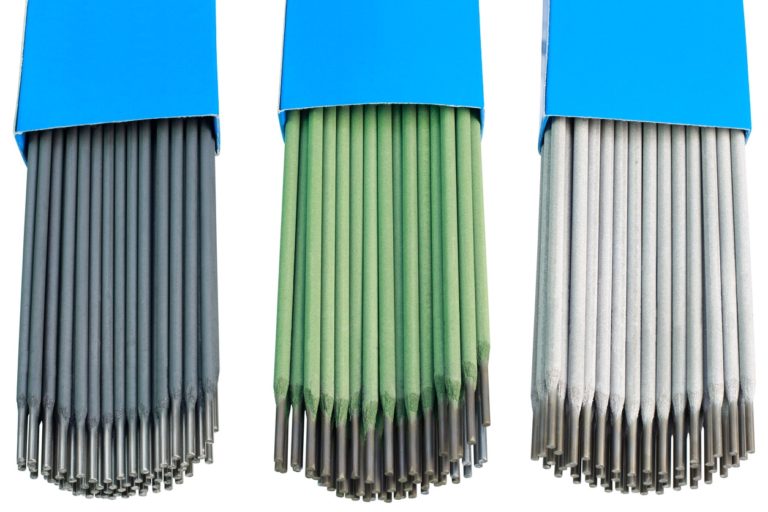

| Welding electrode color | Grey, green, blue, or as requirement |
| Wire Drawing Machine | Wire drawing machine is used for drawing of steel, aluminum, copper and other metal wire . The metal wire rod can be drawn by single draw of the unites depends on its sizes. From wire rod inlet to finished wire outlet, all wire drawing process was completed at one time . Along with the wire drawing, the winding drum increasing speed accordingly |
| Wire Cutting Machine | Wire cutting machine is the special equipment for welding electrode production line. It's used for straightening and cutting the welding rod core wire |
| Powder Mixer | Power mixer is the especial machine for welding electrode production, which is used to dry mixing and wet mixing. It adopt double-S axles to forward and reverse mixing, which mix welding powder more uniform. The machine with big torque, especially suitable for mixing common and special welding electrodes power |
| Screw Powder Coating Machine | Screw powder coating machine is the special equipment for welding electrode production line . It is adopt of screw power coating craft , to make continously powder coating on the surface of core wire |
| Words Printer | Words printer is used to print model or brand on electrodes. It is stepless speed regulation, base on different diameter of electrodes |
| Box Type Hot Air Circulation Drying Furnace | The furnace mainly designed for drying special welding electrode, and can be used also for the preheating and drying of other materials or heating treatment of metals under 450ºC |
| Shrink Packing Machine | Shrink packing machine is used for shrinking film to cover box and heating tightly covered. The shrink package surface perfectly, sealing, moisture resistance, pollution prevention |
| Strapping Machine | Strapping machine is used for strapping electrodes carton with packing belts |
