Welding Rod Making Machine

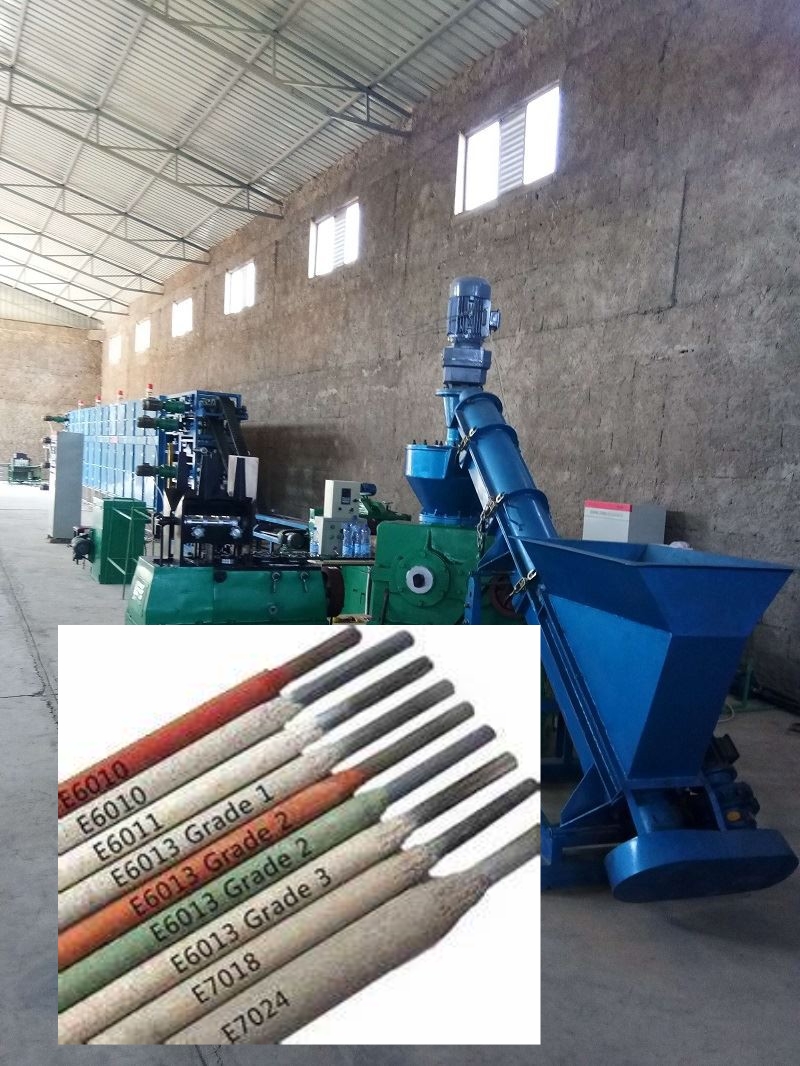

Welding electrode production equipment

Product description: Ordianry steel iron welding rod making machine,welding electrode production equipment supplier of China
INQUIRY

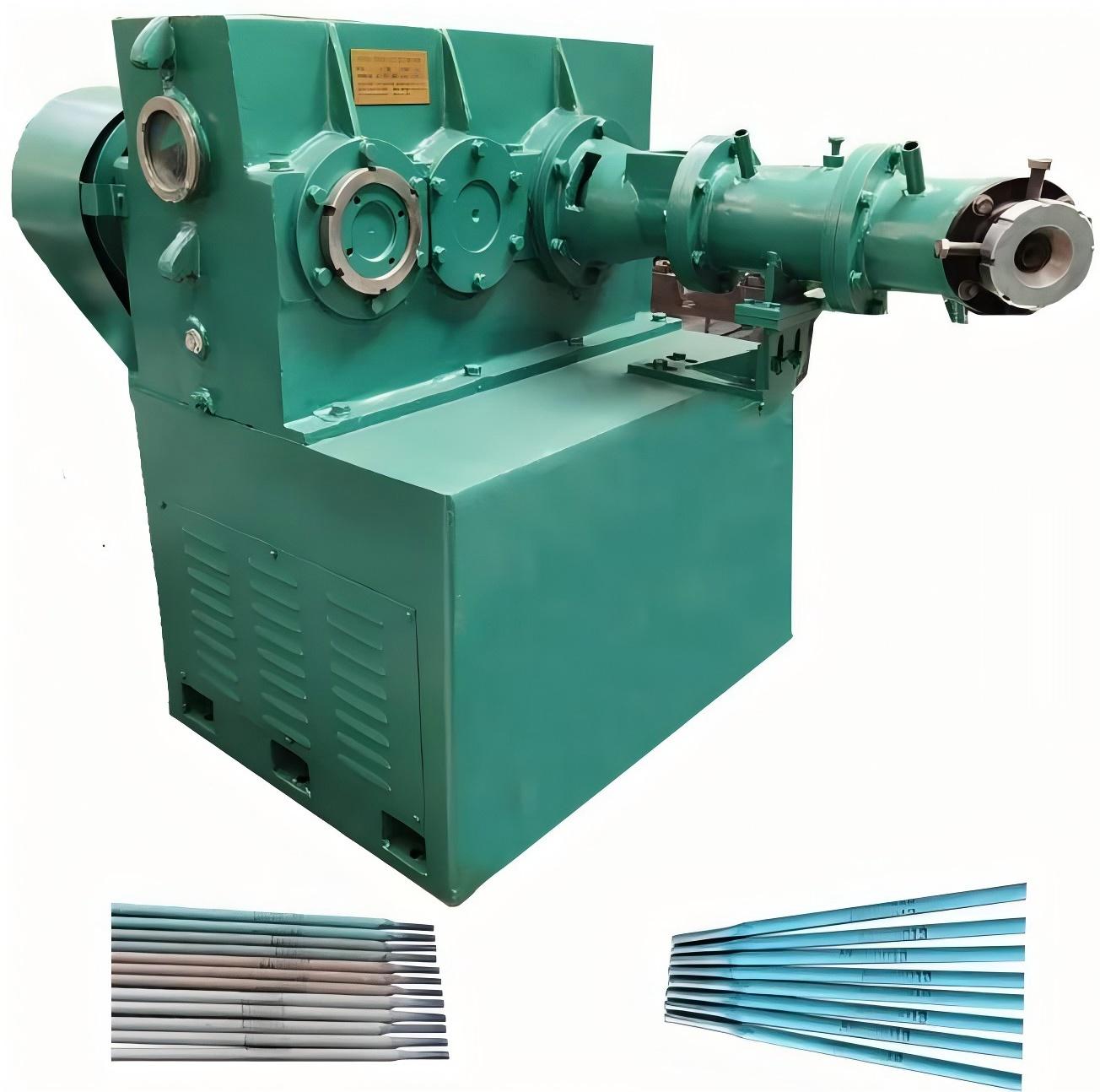

Screw Powder Coating Machine
Screw powder coating machine is the special equipment for welding electrode production line . It is adopt of screw power coating craft , to make continously powder coating on the surface of core wire.

Model No.	100A
Powder cylinder diameter	100mm
Reamer rotate speed	32-60 r.p.m
Working height	990mm
Motor power	22kw

Screw Type Coating Method In the screw type coating method, The prepared wet flux is fed into a hopper that leads into a screw extruder. The screw inside the extruder rotates and pushes the flux forward under pressure. As the core wire passes through the screw mechanism, the flux is applied to it. The density of the coating can be controlled by the rotation speed of the screw and wire feed speed.After the coating is applied, the electrode passes through a die, which shapes the coating to a desired diameter and ensures uniformity.

Welding electrodes diameter	2.0mm, 2.5mm, 3.2mm, 4.0mm, 5.0mm
Welding electrodes length	200mm-500mm
Productive capacity	2-10tons/ shift (8hours)
Voltage	380V / 50HZ, or as requirement
Equipment color	Green colour , blue colour or as per buyer's requirement.
Welding electrode color	Grey, green, blue, or as requirement

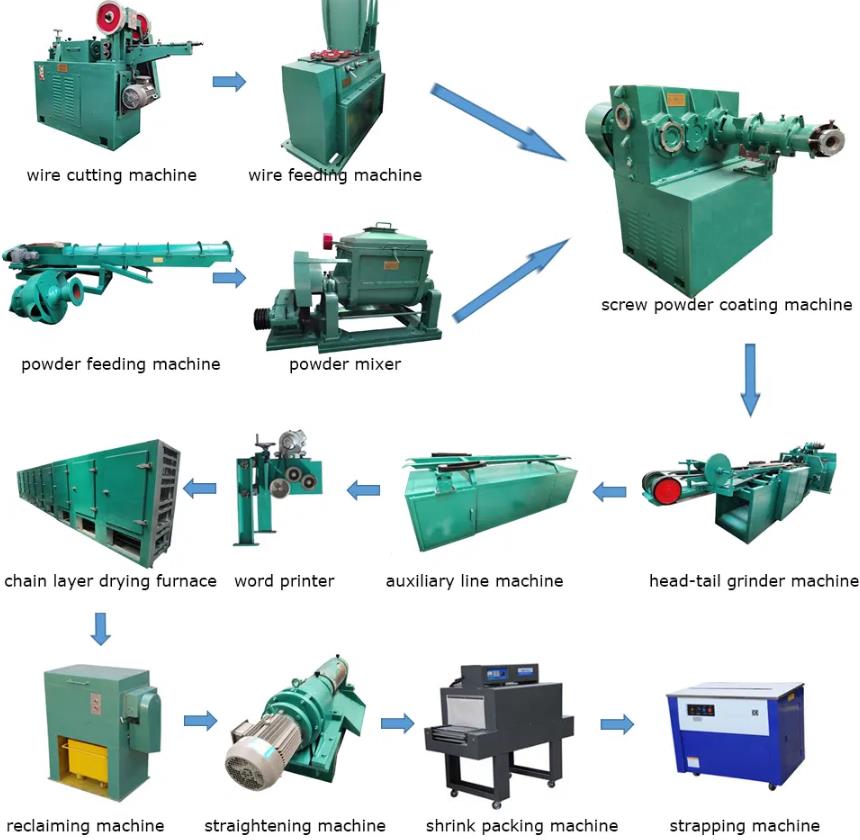

Wire Drawing Machine	Wire drawing machine is used for drawing of steel, aluminum, copper and other metal wire . The metal wire rod can be drawn by single draw of the unites depends on its sizes. From wire rod inlet to finished wire outlet, all wire drawing process was completed at one time . Along with the wire drawing, the winding drum increasing speed accordingly
Wire Cutting Machine	Wire cutting machine is the special equipment for welding electrode production line. It's used for straightening and cutting the welding rod core wire
Powder Mixer	Power mixer is the especial machine for welding electrode production, which is used to dry mixing and wet mixing. It adopt double-S axles to forward and reverse mixing, which mix welding powder more uniform. The machine with big torque, especially suitable for mixing common and special welding electrodes power
Screw Powder Coating Machine	Screw powder coating machine is the special equipment for welding electrode production line . It is adopt of screw power coating craft , to make continously powder coating on the surface of core wire
Words Printer	Words printer is used to print model or brand on electrodes. It is stepless speed regulation, base on different diameter of electrodes
Box Type Hot Air Circulation Drying Furnace	The furnace mainly designed for drying special welding electrode, and can be used also for the preheating and drying of other materials or heating treatment of metals under 450ºC
Shrink Packing Machine	Shrink packing machine is used for shrinking film to cover box and heating tightly covered. The shrink package surface perfectly, sealing, moisture resistance, pollution prevention
Strapping Machine	Strapping machine is used for strapping electrodes carton with packing belts
