Steel Welding Electrode Production Line,Iron Welding Electrode Manufacturing Plant

Welding Electrode Production Line is a kind of machinery used to produce electrodes, usually the diameter specification of electrodes is 01.6, middle diameter 2.5. φ3.2, 04.05, 06 mm, length range 200 ~ 550 mm. Our equipment is made of high-quality metal shell, the overall performance is superior, wear-resistant and durable. Our Consumable Electrode Welding Machinery has complete specifications and can meet different production needs.

Parameter

1. Output: 3 to 5 tons, 6 to 8 tons, 8 to 10tons per 8 hour (take the Φ3.2mm's welding electrode for example)

2. Delivery time: 60day

3. Size of the production: Φ2.5mm, Φ3.2mm, Φ4.0mm, Φ5.0mm

4. Production electrode type: ordinary carbon steel electrode AWS E6013  E6011  E6011  E7018

5. Workers: 8-10 people; assistant personnel:2-3 people

6. Transportation: three 40 feet containers

Design specification

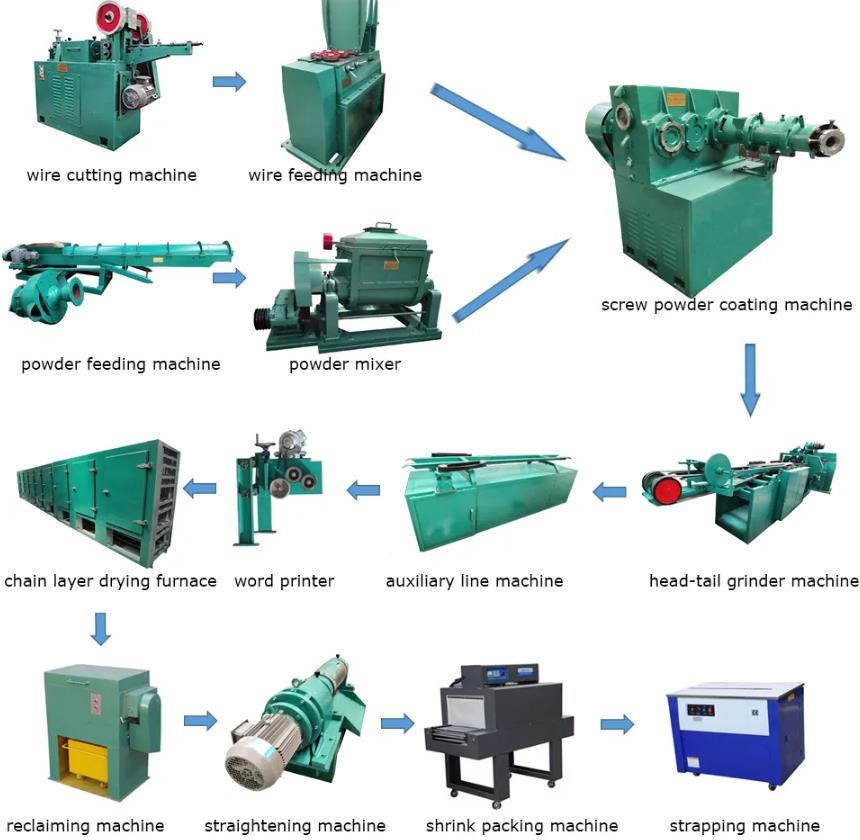

The output of 135A helical coated welding electrode production line is usually about 1 ton per hour. It has simple structure, easy manufacturing, convenient maintenance, no need to stop charging, can continuous production, so it has high production efficiency, and make the coating thickness uniformity, smooth, dense, the advantages of stable quality, also can make the pressure of electrode coating, transfer, grinding head, grinding, printing, drying and packaging process to realize the automatic intelligent or completely, is mainly in the production of the electrode production methods.
